Comprehensive package of HVAC Design and Engineering Programs that incorporate Industry-standard recommendations and guidelines, as well as Code requirements.  Complex formulas, fitting coefficients, psychrometrics, energy awareness, and owning costs are built-in to assure efficient use of your time and to increase your Value to your  Clients.

Contents PageImage15.gif (49978 bytes)

HVAC Airside Design Package includes over (23) Programs and Forms that include: supply and return/exhaust fan static pressure calculations, duct system sizing (equal friction and static regain sizing), and several additional HVAC design tools.  To view the Contents Page of the HVAC Airside Design Package, click the adjacent image for a full size view.

To view our "HVAC AIRSIDE DESIGN" slideshow demo, Click Here


Project InformationImage4.gif (36119 bytes)

The first page of the HVAC Airside Design Package is the "Basic Project Information" form.  This should be the first Form to be completed for every project.  Project information that is inserted in this Form is automatically transferred to other Programs for use in calculations and for documenting project data.  Input Data for the Form should be based on recommendations from nationally recognized associations such as ASHRAE® and from locally adopted Codes.  (Click Image to enlarge)


Building Information & Load Calc FormsImage14.gif (13459 bytes)

"Extras" included with the Airside Design Package include "Building Information Request" Forms and Letters and Load Calc Takeoff Forms that assist with Load Calculations and with Duct and Equipment layout.  (Note: Actual Cooling and Heating Load Calculations are not included in these Programs)  (Click to enlarge)




Three alternatives are provided for Duct System Sizing "To Avoid Obstructions" - Individual Ducts (Enhanced Equal Friction), Complete Ductwork Systems (Enhanced Equal Friction),  Complete Ductwork Systems (Simplified Static Regain).  Each method includes calculations and ductwork sizing that incorporate the space that is available for the Ductwork installation (helps to avoid conflicts and potential Change Orders!). (Click any image to enlarge)


Image12.gif (19439 bytes)Image11.gif (21447 bytes)Fan Static Pressure CalcsImage10.gif (25157 bytes)

Two extensive Programs are included for Fan External Static Pressure Calculations - Supply Fan and Return/Exhaust Fan Calcs.  Both Programs include an extensive database of Ductwork Fitting Coefficients and "Generic" Equipment Pressure Drop data.  Multiple alternatives are provided for design static pressure for the ductwork, as well as for the type and arrangement of fittings and accessories.  (Click any image to enlarge)


Miscellaneous DesignImage17.gif (25447 bytes)Image8.gif (15255 bytes)

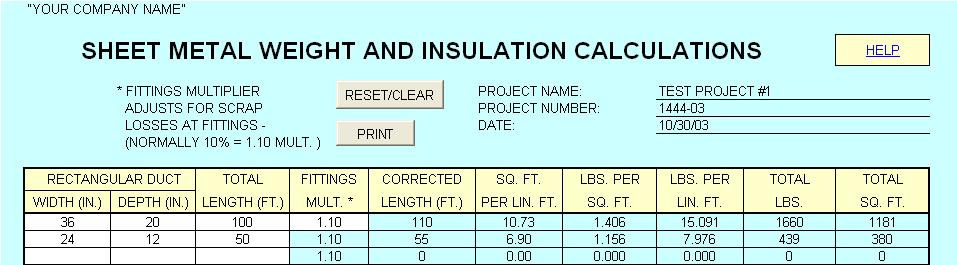

Several additional Programs are included for Miscellaneous Design Tasks that may not be used on every Project.  The "Sheet Metal Weight" Program is helpful in Cost Estimating.  (Note that the "Acoustical" Programs strongly recommend that the "Results Should Be Verified By An Acoustical Consultant").  Also included is a "Freeware" Conversion Program that can be used for many typical conversions, such as English to SI Units.  (Click any image to enlarge)



ALL of the above Programs, Forms, and Extras are included in the HVAC Airside Design Package.  Order now to assure that you will receive the low "Limited Time Special Prices".  Go to the Prices/Orders page for details.
